| OPTICS |
| Light source：460W white LED |
| Beam angle：6°-42° |
| Power Consumption：550W |
| PAN-TILT |
| Pan movement:540°(16bit) |
| Tilt movement:270°(16bit) |
| Advanced motion system:auto repositioning,fast,quiet and smooth |

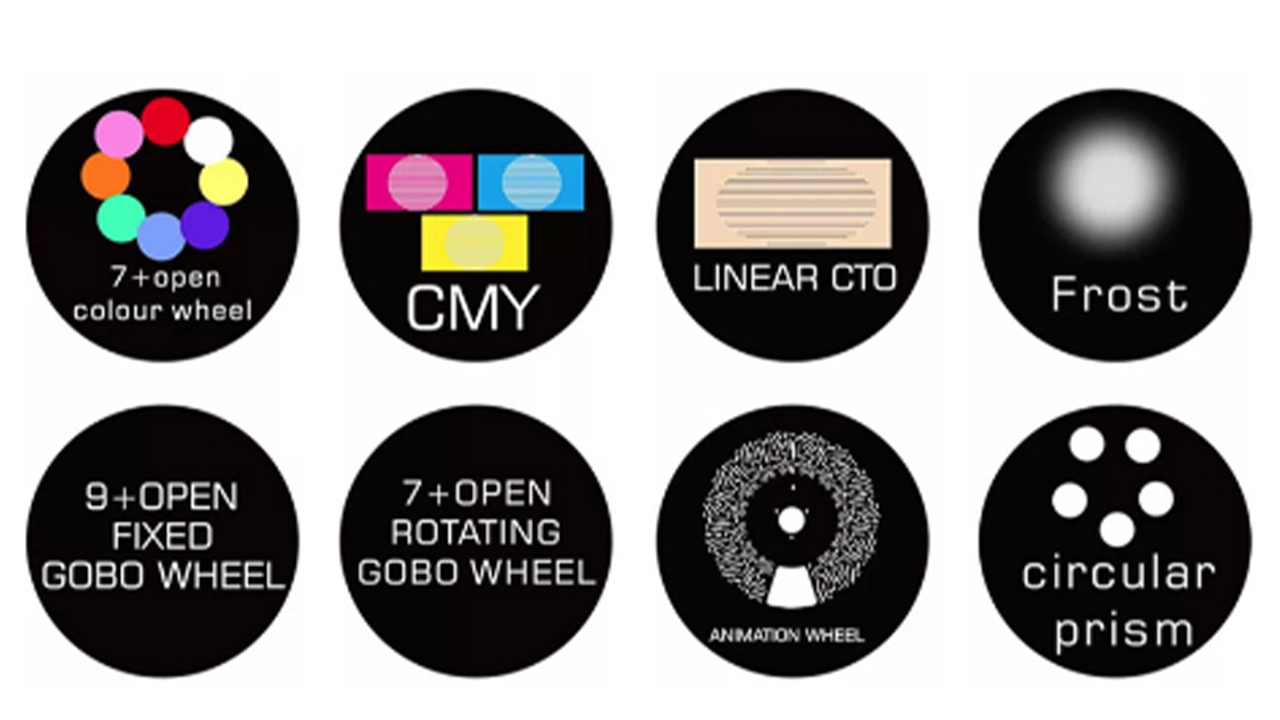

| FEATURES |
| Color: CMY+CTO color mixing system |
| 1 color plate: 7 fixed color plates + white light |

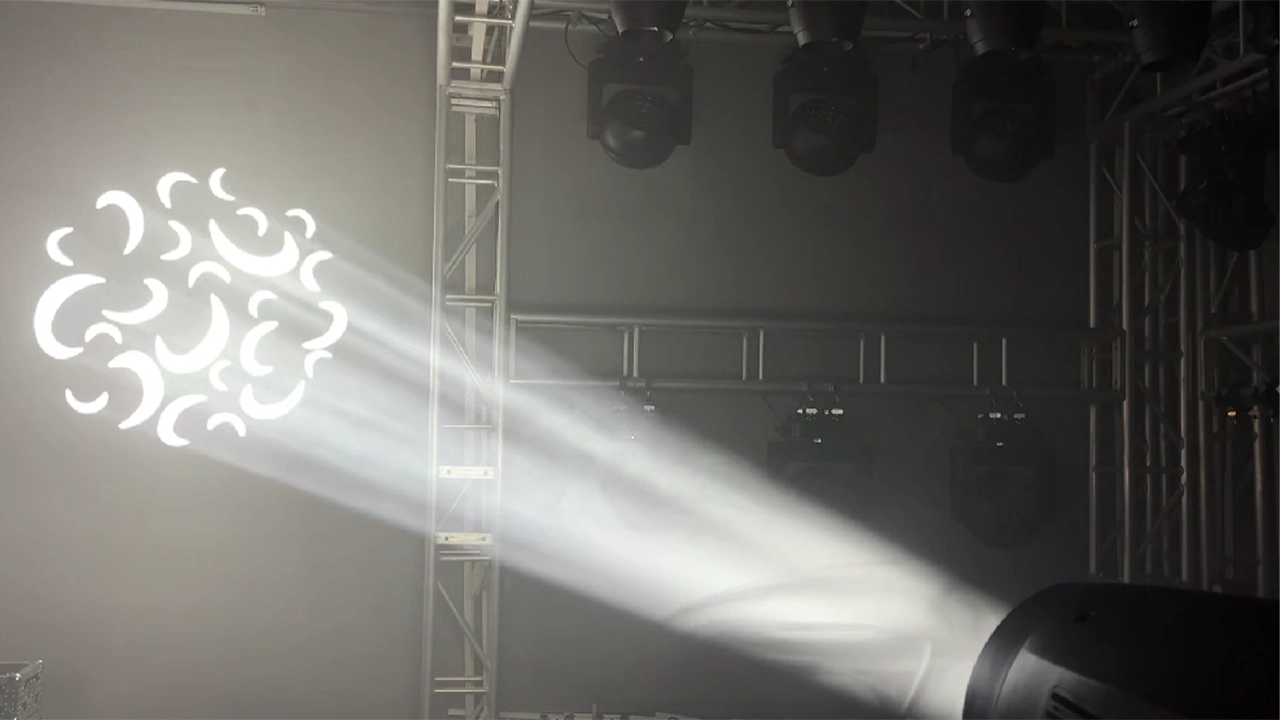

| Gobo: 1 effect plate (fire plate) |

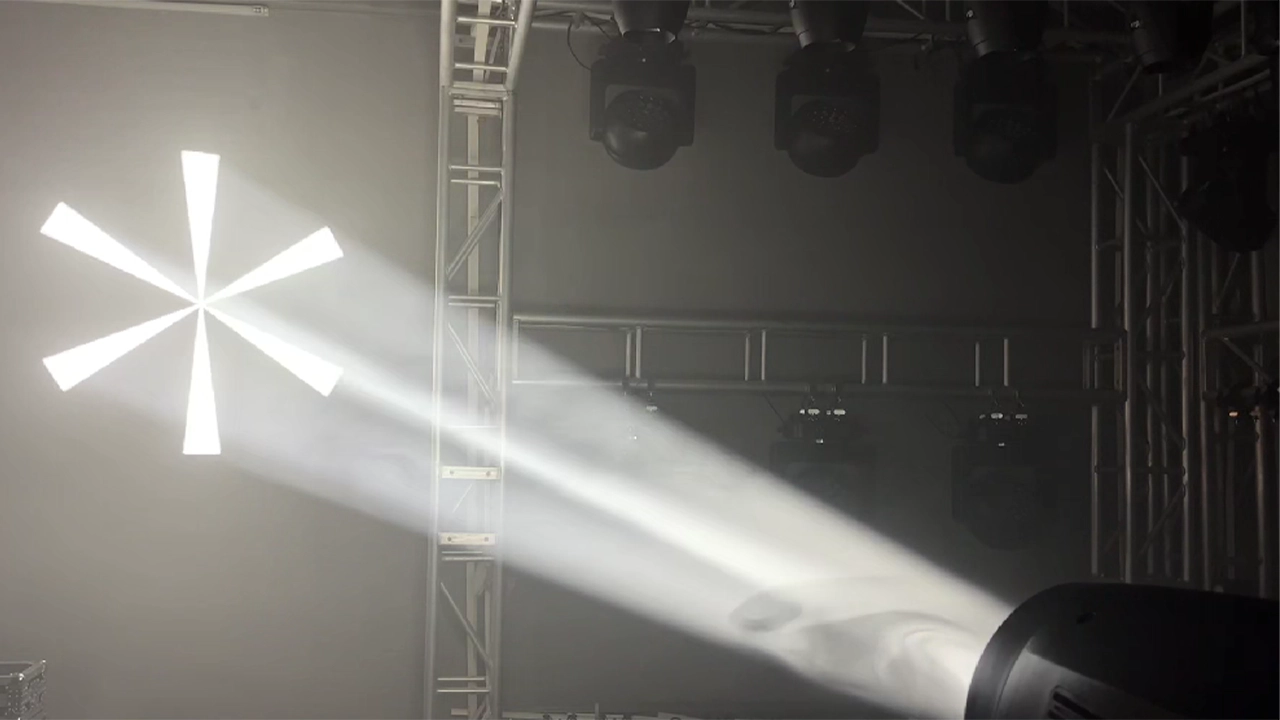

| 1 rotating gobo wheel: 7 gobos+white |

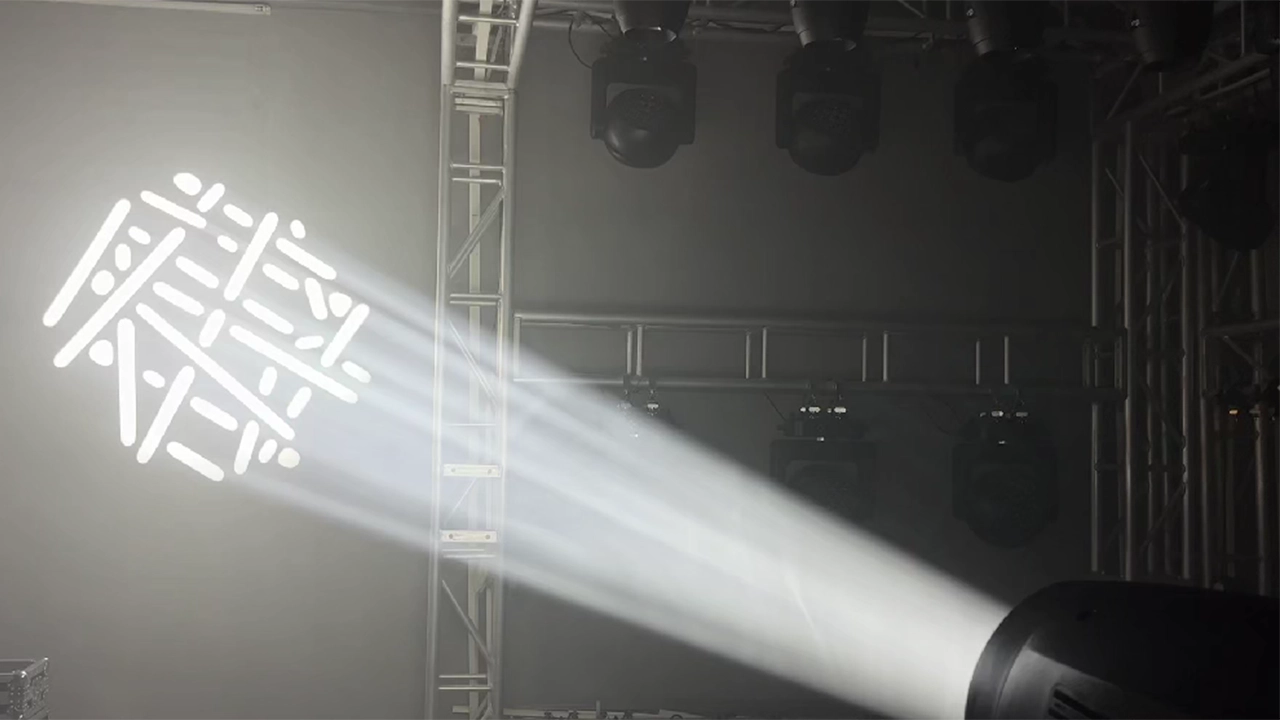

| 1 fixed pattern plate: 9 pattern pieces + white |
| Prism: 1 bidirectional 5-face prism |
| 5-100% electronic Iris |
| Atomization: 2 atomizing films, which can be switched independently or superimposed to use light、Moderate fogging. |
| Frost: Light frost, heavy frost |
| Animation wheel: special dynamic water effect |
| Dimming: 0-100% linear dimming |
| DMX Channels:25/36channels |
| CONTROL |
| DMX 512 , Art-net Ethernet, RDM |
| SPECIFICATION |

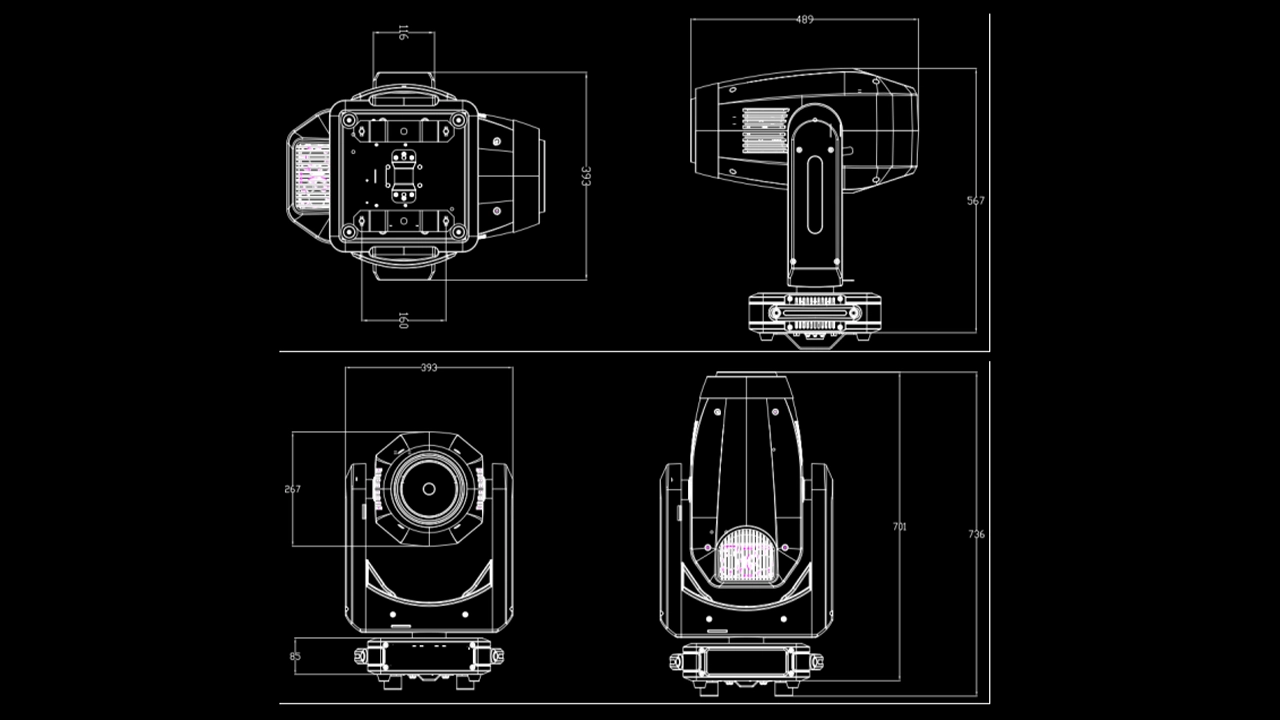

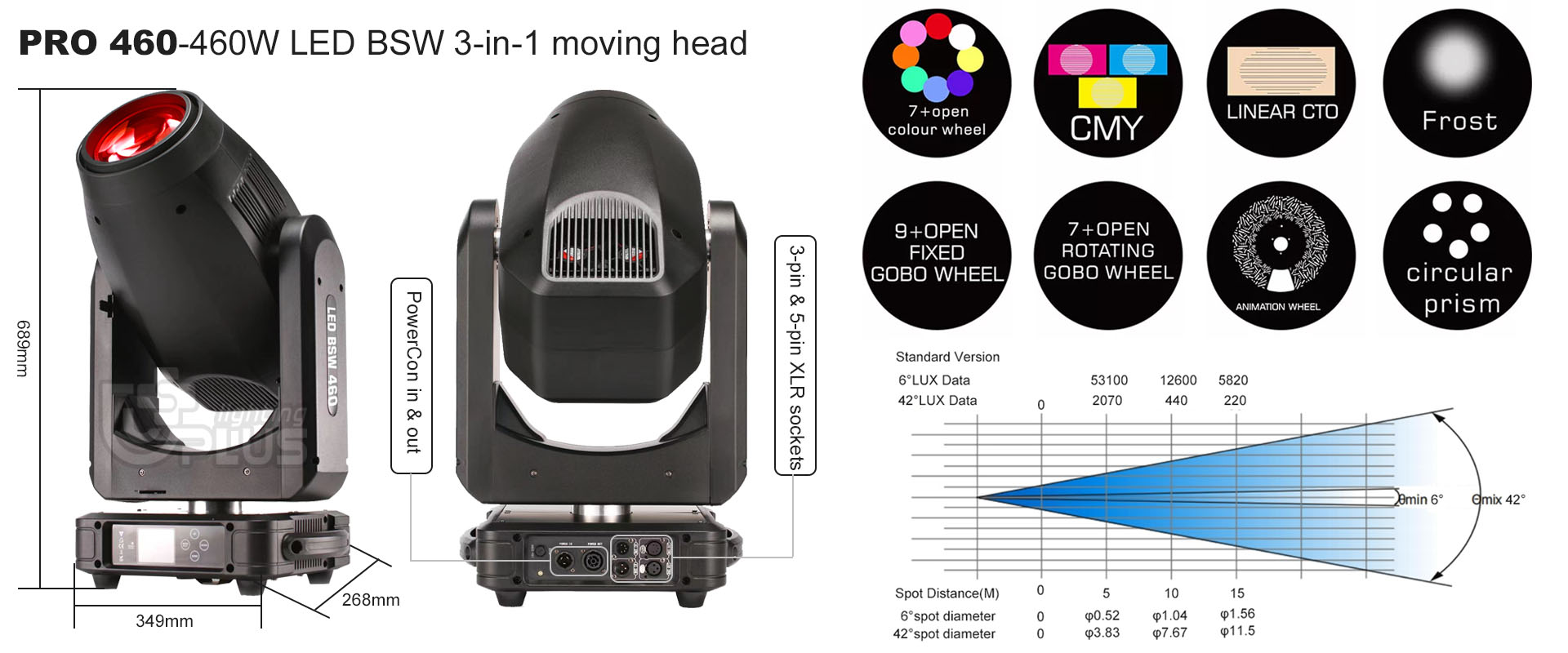

| Dimension: 840*460* 380 mm, NW:25.9 kg |
