OPTICS |
Light source:200W new type led module (the light collector is integrated with the LED) |
Beam angle:2° |
Power Consumption:250W |
Color Tempreture: 6500K |
PAN/TILT |
Pan: 540°(16 bit precision scan) |
Tilt:270° (16 bit precision scan) |
Automatic error correction reset function |
FEATURES |
Color wheel: 13 color + white, Half-color effect |
An independent 6 color plate |
Gobo wheel: 14 patterns + white, pattems dithering effect |
Prism: 8 prism,two-way direction rotating |
Focus: Electronic foucusing |
Atomizing:atomizing soft mirror |
Dimming: 0-100% linear dimming |
Strobe:0-25 times/sec |
DMX Channels:16channels |
can change the DMX address code,machine reset and other functions from the console |
CONTROL |
Display:LCD colorful display,the display can be reversed 180° |
Control mode:DMX512,Auto, Sound active, Master/slave,RDM |
SPECIFICATION |

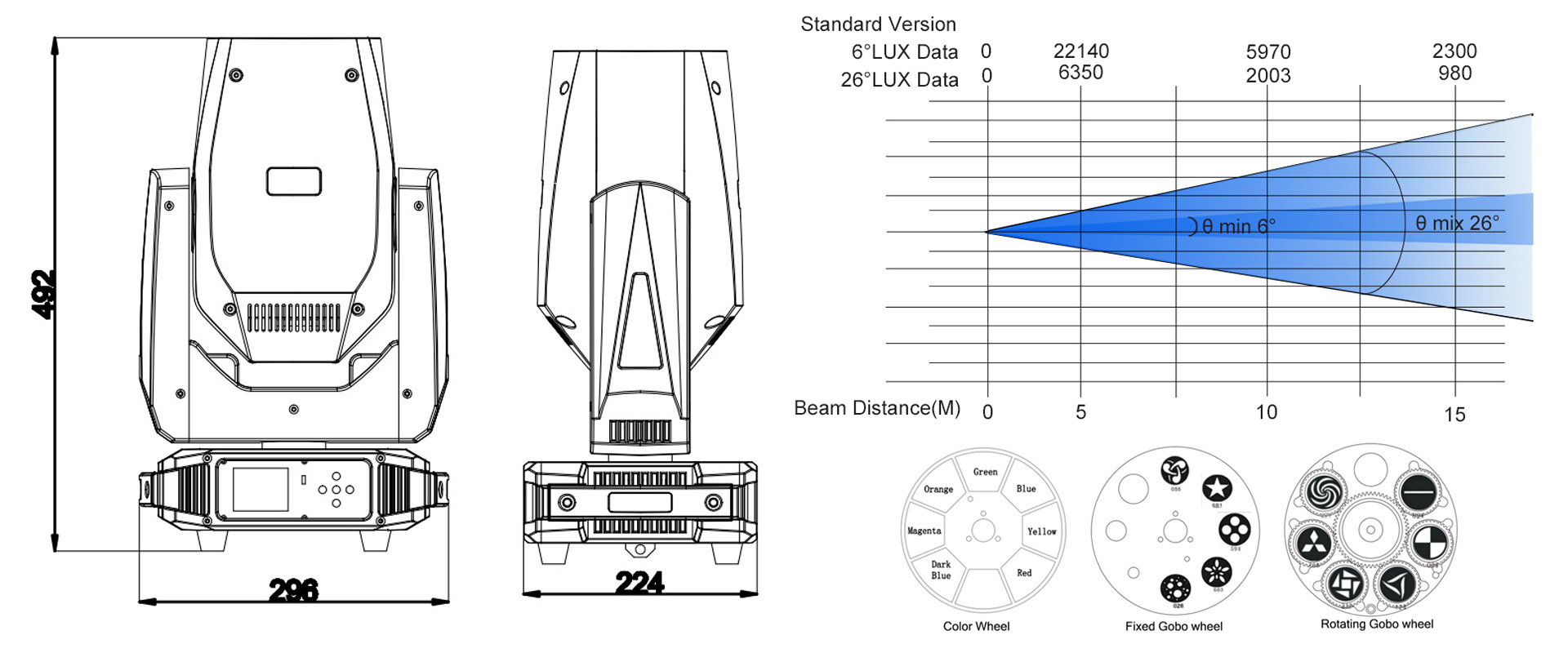

Dimension:323*207*560mm, NW:12.5KGS |
NW:folding hooks version is 13.5kgs |
